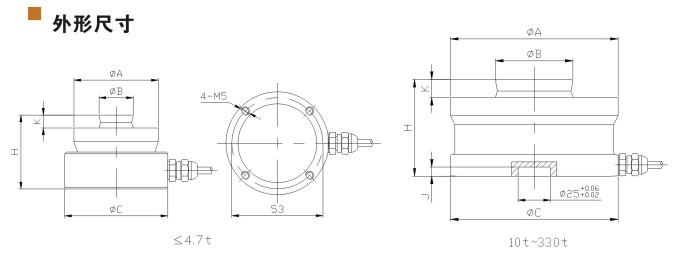

量程
|
A |
B |
C |
H |
J |
K |
|
2.2t |
49 |
20 |
60 |
43 |
- |
7.5 |
|
4.7t |
49 |
20 |
60 |
43 |
- |
7.5 |
|
10t |
75 |
30 |
75 |
50 |
7 |
6.5 |
|
15t |
75 |
30 |
75 |
50 |
7 |
6.5 |
|
22t |
75 |
30 |
75 |
50 |
7 |
6.5 |
|
33t |
95 |
40 |
95 |
65 |
7 |
10 |
|
47t |
130 |
60 |
130 |
75 |
7 |
14 |
|
68t |
130 |
60 |
130 |
85 |
7 |
14 |
|
100t |
150 |
70 |
150 |
90 |
7 |
16 |
|
150t |
150 |
70 |
150 |
100 |
7 |
16 |
|
220t |
225 |
100 |
225 |
130 |
10 |
24 |
|
330t |
225 |
100 |
225 |
145 |
10 |
24 |
技術參數
|
參數 |
單位 |
技術指標 |
參數 |
單位 |
技術指標 |
|
靈敏度 |
mV/V |
2.85±0.3% |
靈敏度溫度系數 |
≤%F·S/10℃ |
±0.05 |
|
非線性 |
≤%F·S |
±0.05 |
工作溫度范圍 |
℃ |
-20℃～+80℃ |
|
滯后 |
≤%F·S |
±0.05 |
輸入電阻 |
Ω |
1400±10Ω |
|
重復性 |
≤%F·S |
±0.03 |
輸出電阻 |
Ω |
1400±50Ω |
|
蠕變 |
≤%F·S/30min |
±0.05 |
安全過載 |
≤%F·S |
150% F·S |
|
零點輸出 |
≤%F·S |
±1 |
絕緣電阻 |
MΩ |
≥5000MΩ(50VDC) |
|
零點溫度系數 |
≤%F·S/10℃ |
±0.05 |
推薦激勵電壓 |
V |
10V-15V |
